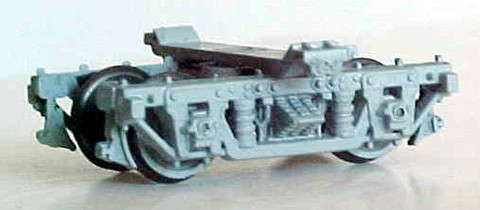

HOn3 D&RGW Passenger Car Trucks 5'0"WB KIT5002A, 1 pair


 Product Description

HOn3 D&RGW Passenger Car Trucks 5'0"WB KIT5002A, 1 pair.

This is the D&RGW Standard Narrow Gauge PASSENGER CAR TRUCK in use FROM 1881 TO 1981 and on restored or operational cars on tourist railroads today. 1 pair per package. This is an injection molded styrene plastic kit for these trucks. Manufactured by the Model Railroad General Store, PT # 5002A. The kit is designed to use the plastic wheel/axle sets supplied or, purchaser supplies, (Grandt*) wheel/axel sets with blunt ends (not included), or pointed axle wheel sets, like NWSL*, Kadee, Micro Scale, PSC*, etc., that may be used with slight modification, see instructions. 5 foot 0 inch wheel base, 3 foot gauge, composite metal and wood, with outside brake beams. Various wheels sizes from 26 to 30 inches in diameter. Standard until 1920 was either 28 or 30 inch wheels, after 1920 all operating cars received 26 inch wheels. This kit has 26 inch diameter wheels. A cross car bolster with out board bearings, as applied to Passengers Cars after 1920, is supplied as an additional part. We are often asked "where are the bolsters on the cars?". The answer is they are flush with the bottom sheathing and not exposed. For earlier cars, without the out board bearings, substitute one or more fiber washers to get correct coupler height. See photos for parts and completed truck. Gray painted ones are for detail, correct color is Pullman Green to match car sides, or Silver for post '50's D&RGW and post '81 D&SNG. Sold as a pair with plastic wheels and axles. Easy assembly. Be sure to check out our other items, for even more narrow gauge rolling stock, locomotives, structure kits, pictures and more, lots more Narrow Gauge.

NOTE*: These manufactures have stopped production and have either closed up shop or been sold to others.  Check eBay for possible old stock items.

Multiple purchases are fine, mix or match size/diameter/length OK, shipping will calculate accordingly. Thanks for your order. Check my other items & auctions for bulk packages and other fiber optics, order extras and save on freight cost.

Thank you for your interest, we apprteciate your business.

Shipping & Payments

I do combine items to save you on shipping charges. When you fill out my automatic checkout, your reduced charges will automatically be computed.

Domestic shipping via USPS First Class Mail.  Charge will be $3.25. If you do not get billed this rate, I will either refund over charge or send you a request for additional funds.  Occasionally the algorithm will not return correct rate so please understand.

Shipping for international orders will be Priority Mail unless requested otherwise. Priority Mail includes tracking for your benefit.  At this point we have not been able to establish tracking for First Class Packages, when we can we will alter our shipping methods; however if you request it we will do it for you.

We prefer PayPal Payments.

 Product Reviews

Write review

This product hasn't received any reviews yet. Be the first to review this product!

3.00 Ounces
$3.25 (Fixed shipping cost)
